Domestic Gas Installations Kits

Welcome to The LpGas Man, your go-to source for affordable and professional gas installations services in Johannesburg. With more than 10 years of experience and expertise in the industry, we are equipped to handle a wide range of residential gas installations for a variety of gas-powered appliances, including,

  • Gas hobs, Gas Stoves, Gas braais, Gas heaters, Gas fireplaces, Gas generators, Gas geysers/Water heater, Gas heat pumps, Gas underfloor heating.

A Certificate of conformity (CoC) will be issued with each and every new gas installation.

* A list of basic gas Installation kits we offer can be found below. A breakdown can be found towards the bottom of the page.

Options to consider...

  • Internal Installations

    Here are some instances where an internal installation be the ideal choice:

    • Limited Outdoor Access
    • Building Restrictions
    • Central Kitchen Location
    • Budget Constraints
    • Building Integrity

    In these situations, considering internal gas installations becomes essential. They can offer solutions that align with these challenges while still providing efficient and safe cooking options. Remember, each scenario is unique, and the decision should be based on a thorough assessment of your property's layout, regulations, and your budget constraints.

    We'll help you explore the best options for your circumstances and ensure you make an informed choice that aligns with your needs and priorities. Click here to see what's included in our internal basic kit

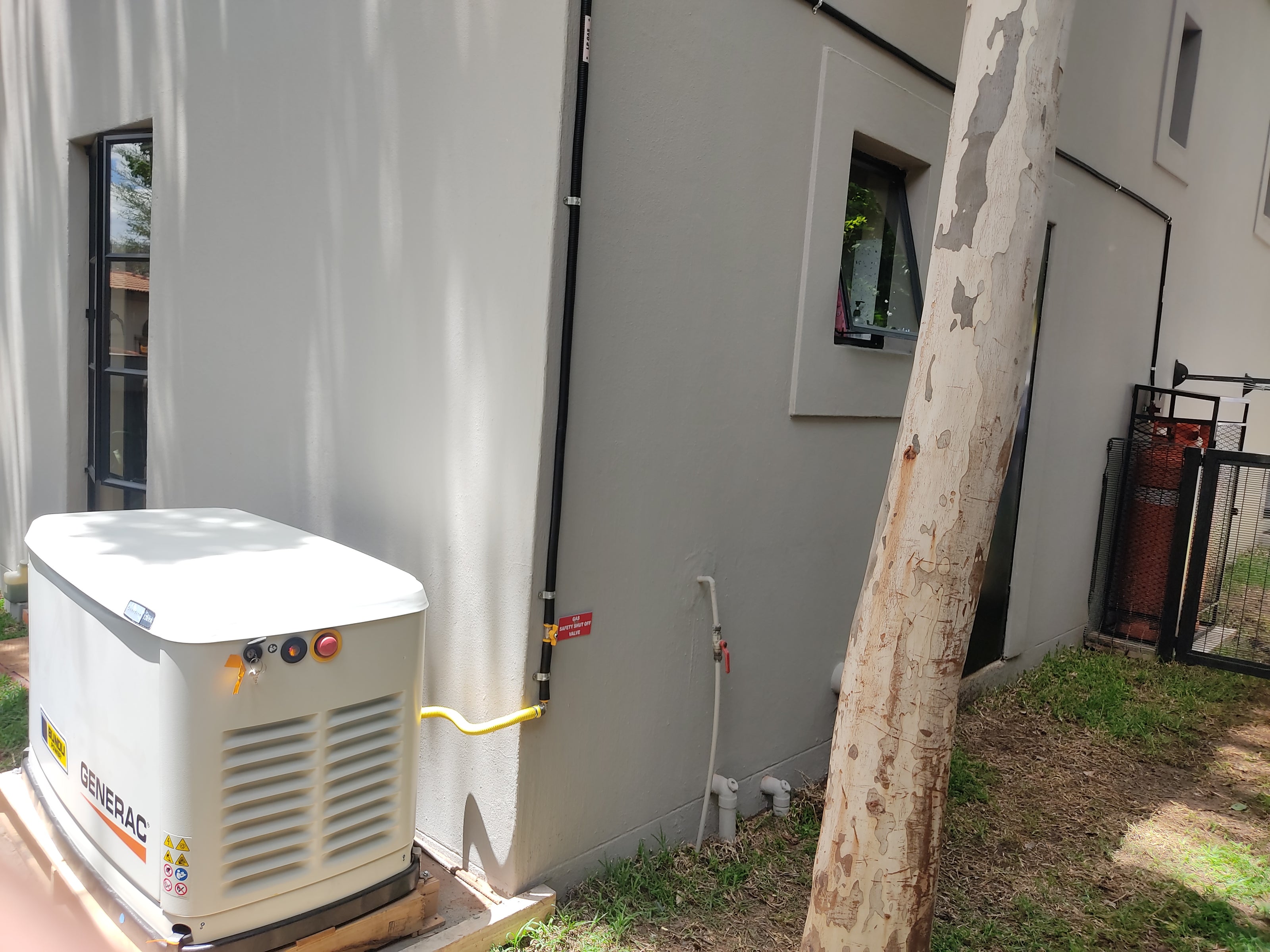

  • External Installations

    Exploring External Installations

    Consider the advantages of external gas installations, particularly in these scenarios:

    • Preferred Choice by Installers:
    • Space Optimization
    • Enhanced Safety:
    • Unobstructed Kitchen Design
    • Easier Cylinder Management:
    • Larger Cylinders
    • Flexible Location

    In these situations, opting for an external gas installation can provide you with convenience, safety, and an efficiently organized kitchen. Our team of experts will assist you in assessing your specific situation, ensuring that you arrive at the optimal decision to meet your culinary requirements. Your contentment, safety, and kitchen functionality are our foremost concerns. Click here to see what's included in our internal basic kit

  • Please note...

    Renovating your kitchen? Please notify your electrician/builder to follow the below regulation.

    • Electrical equipment, such as light switches and plugs, shall be at least 200 mm away from any burner and potential point of gas release.
    • Where it is necessary to install a gas hob together with an electric oven, a three-point plug socket shall not be used to connect the electric oven. A proper isolator switch shall be in place above the level of the hob and it shall have at least 200 mm clearance from the hob.
    • If your electrician wants to add a plug point, This can be used but only in a partition that doesn't house the cylinder or hob. This is due to arcing between the 2 points.
    • No electrical connection such as a plug point or switch shall be made below the hob. This will be in accordance with the requirements of SANS 10108.

What Installation kit best suits you?

1 3

External Option 1

Basic Installation kit connecting 1 x 9/19 or 48kg cylinder to a gas appliance consisting of the following:

EXPAND FOR BREAKDOWN +

* 300mm Pigtail
* Astro low pressure wall mounted regulator + Bracket
* Straight Male 12/16 x 3/8
* 5m PEX - AL - PEX PIPE 12/16 Gas line. Additiinal @R75/m
* 2 Pex Elbows 12/16. Additional Elbows @R75/Elbow
* Emergency Shutoff Valve 12/16 Pex
* LPG Gas Emergency Shutoff Valve Plate
* Hosetail 12/16 Pex
* 2m Orange Hose + Clamps
* 1m Chain and anchor
* Conduit Sleeve + Brackets
* Core Drill Through Wall Partition
* Labour
* Issue Lp Gas CoC ( Certificate of Conformity )

* Cage not included. Optional Extra

  • The above breakdown may vary slightly as we use different forms of connections and pipe sizing for different appliances.
  • While the installation of a gas cages is not always required, it may be used in certain circumstances. For example, if a gas cylinder is located under a window. A gas cage is used to reduce the horizontal distance between the window and the cylinder from 3 meters down to 600mm. This provides an additional layer of safety. If you dont need a cage but would like a cage installed with a new or existing installation for added protection, We offer a variety of gas cage sizes and styles.
  • Visit our gas regulations page for ideas on a cyclinder placement.

External Option 2

Backup/High demand Duel cylinder Installation kit connecting 2 x 9/19 or 48kg cylinders to a gas appliance consisting of the following:

EXPAND FOR BREAKDOWN +

* 2 x 300mm Pigtail* Changeover valve
* Astro low pressure wall mounted regulator + Bracket
* Straight Male 12/16 x 3/8
* 5m PEX - AL - PEX PIPE 12/16 Gas line. Additiinal @R75/m
* 2 Pex Elbows 12/16. Additional Elbows @R75/Elbow
* Emergency Shutoff Valve 12/16 Pex
* LPG Gas Emergency Shutoff Valve Plate
* Hosetail 12/16 Pex
* 2m Orange Hose + Clamps
* 1m Chain and anchor
* Conduit Sleeve + Brackets
* Core Drill Through Wall Partition
* Labour
* Issue Lp Gas CoC ( Certificate of Conformity )

The above breakdown does vary slightly as we use different forms of connections and pipe sizing for different appliances.

  • While the installation of a gas cages is not always required, it may be used in certain circumstances. For example, if a gas cylinder is located under a window. A gas cage is used to reduce the horizontal distance between the window and the cylinder from 3 meters down to 600mm. This provides an additional layer of safety. If you dont need a cage but would like a cage installed with a new or existing installation for added protection, We offer a variety of gas cage sizes and styles.

New builds- Please notify your electrician/builder to follow the below regulation.

Electrical equipment, such as light switches and plugs, shall be at least 200mm away from any
burner and potential point of gas release. Where it is necessary to install a gas hob together with an
electric oven, a three-point plug socket shall not be used to connect the electric oven. A proper isolator switch shall be in place above the level of the hob and it shall have at least 200 mm
clearance from the hob.
No electrical connection shall be made below the hob. This will be in accordance with the requirements of SANS 10108.

Internal Installation

Basic Installation kit for a hob/stove and a gas grill connecting 1 x 9/19 cylinder to a gas appliance consisting of the following:

EXPAND FOR BREAKDOWN +

*Atlas low pressure bullnose regulator
*2m PEX - AL - PEX PIPE 12/16 Gas line  *1 Pex Elbows 12/16
*Emergency Shutoff Valve 12/16 Pex  *LPG Gas Emergency Shutoff Valve Plate *Hosetail 12/16 Pex
*2m Orange Hose + 4x hose clamps
*Conduit Sleeve + Brackets  *Core Drill Through Cupboard Partition
*Install 2x 70mm plastic vents (Base)
*Labour  *Issue Lp Gas CoC ( Certificate of Conformity )

The above breakdown does vary slightly as we use different forms of connections and pipe sizing for different appliances.

Renovating your kitchen? Please notify your electrician/builder to follow the below regulation.

Electrical equipment, such as light switches and plugs, shall be at least 200 mm away from any
burner and potential point of gas release. Where it is necessary to install a gas hob together with an
electric oven, a three-point plug socket shall not be used to connect the electric oven. A proper isolator switch shall be in place above the level of the hob and it shall have at least 200 mm
clearance from the hob.
No electrical connection shall be made below the hob. This will be in accordance with the requirements of SANS 10108.

* Cages are only required under certain conditions.

Contact us on +27 79-586-9947 or fill in the below and we will get back to you.

Why choose us?

As a renowned provider of gas installations, our team with years of experiance are highly skilled and fully registered technicians are dedicated to following all applicable regulations and best practices to guarantee the excellence and safety of our services and our clients. We offer personalized consultations to assist you in determining the most suitable gas line layout and cylinder placement for your specific needs and requirements. With a deep understanding that each customer has distinctive needs, we adopt a customized approach to every project By closely collaborating with you to comprehend your unique requirements. We can deliver tailored solutions that fulfill your needs and surpass your expectations.

Contact us

We follow the law

At The LpGas Man, we are committed to following the law and upholding industry standards in all of our work. As registered Lp Gas Installers, we adhere to the South African National Standards (SANS) codes for appliance approval and certification (SANS 1539) and gas installation (SANS 10087-1:2013). We also comply with the Pressure Equipment Regulation of the Occupational Health and Safety Act (OHSCA), ensuring that our work is safe and meets all necessary health and safety requirements. Trust us to handle your gas installation and repair needs with professionalism and expertise.

For more information about minimum distances and other regulations, please follow the link below. This will provide you with important information about ensuring the safe and proper installation guidlines that we follow.

Click here for more information
